Glow plugs play a critical role in starting diesel engines, particularly under cold conditions. Unlike gasoline engines, which rely on spark plugs for ignition, diesel engines require pre-heating of the cylinder head and engine block to initiate combustion. This is where glow plugs come into play.
What is a Glow Plug?
A glow plug is a small, electrically heated device that resembles a short, stubby spark plug. Its primary function is to pre-heat the combustion chamber, making it easier for the engine to start, especially in cold weather. The glow plug is connected to the car’s electrical system, and when activated, it quickly heats up due to the resistance element inside it.
Activation and Operation
Glow plugs are typically activated in one of two ways: either through an auxiliary position on the steering column switch or by a separate switch on the dashboard. In older vehicles, drivers would manually engage the glow plugs before starting the engine. However, in modern diesel engines, the activation process is automated. The glow plugs are automatically switched on when the driver turns the key to the ignition position, and they remain on until the engine has started and reached a speed above idle.
Automated Shutdown
One of the advancements in glow plug technology is the automated shutdown feature. Once the engine has fired and accelerated beyond idling speed, the glow plugs automatically switch off. This feature not only conserves energy but also prevents potential damage to the glow plugs from prolonged heating.

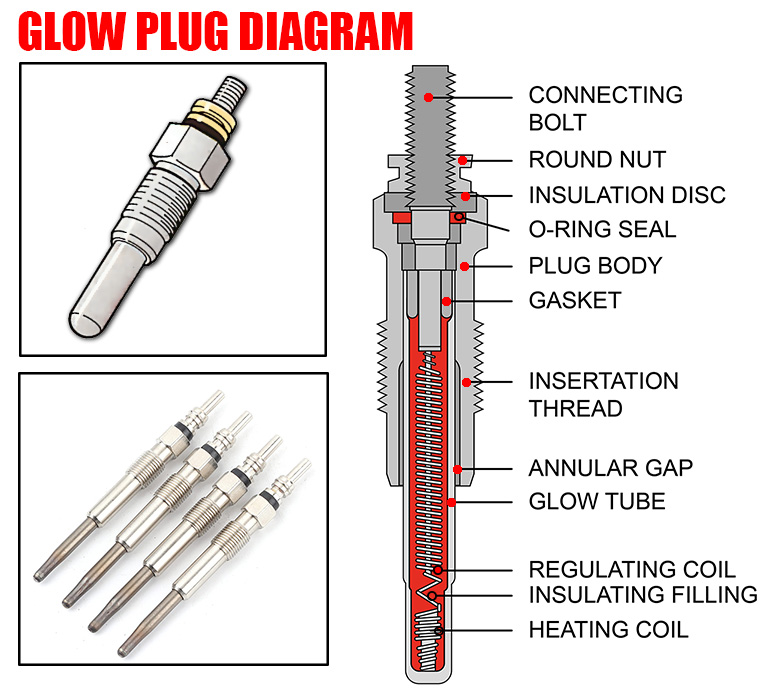

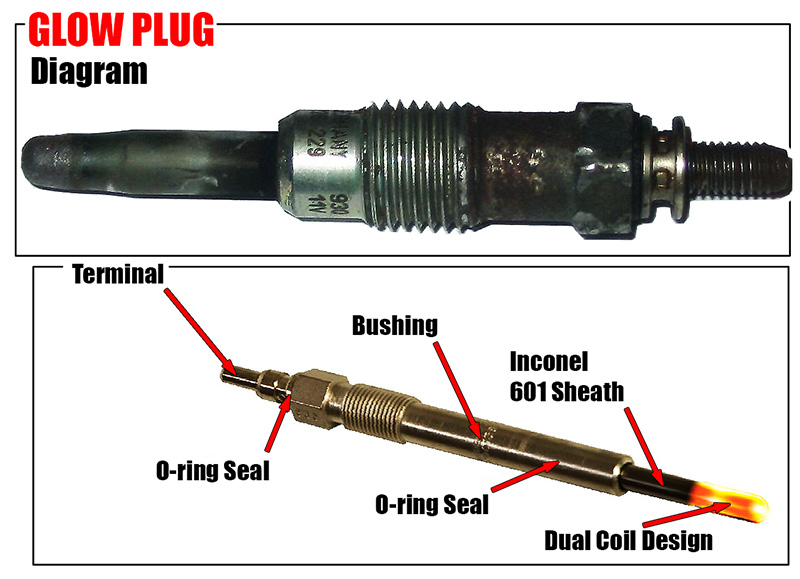

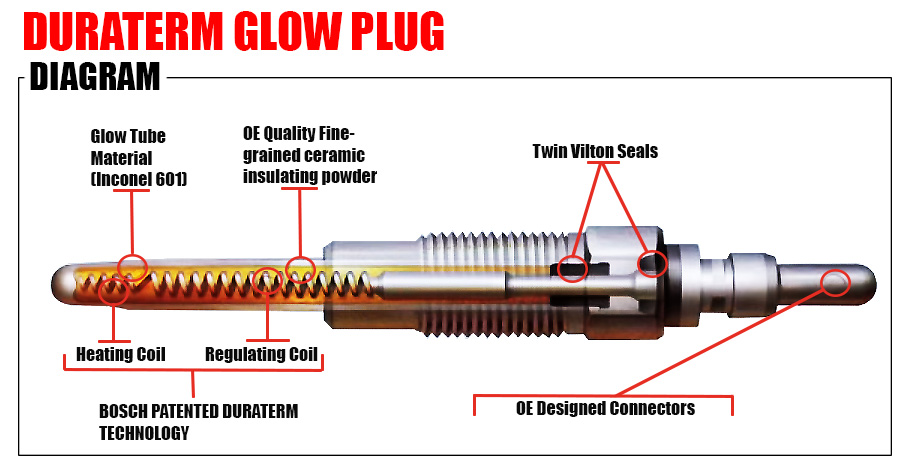

Diagram Overview
The glow plug diagram typically illustrates the following components:
Glow Plug: The primary heating element located in the combustion chamber.
Electrical Connection: The wiring that connects the glow plug to the car’s battery or electrical system.

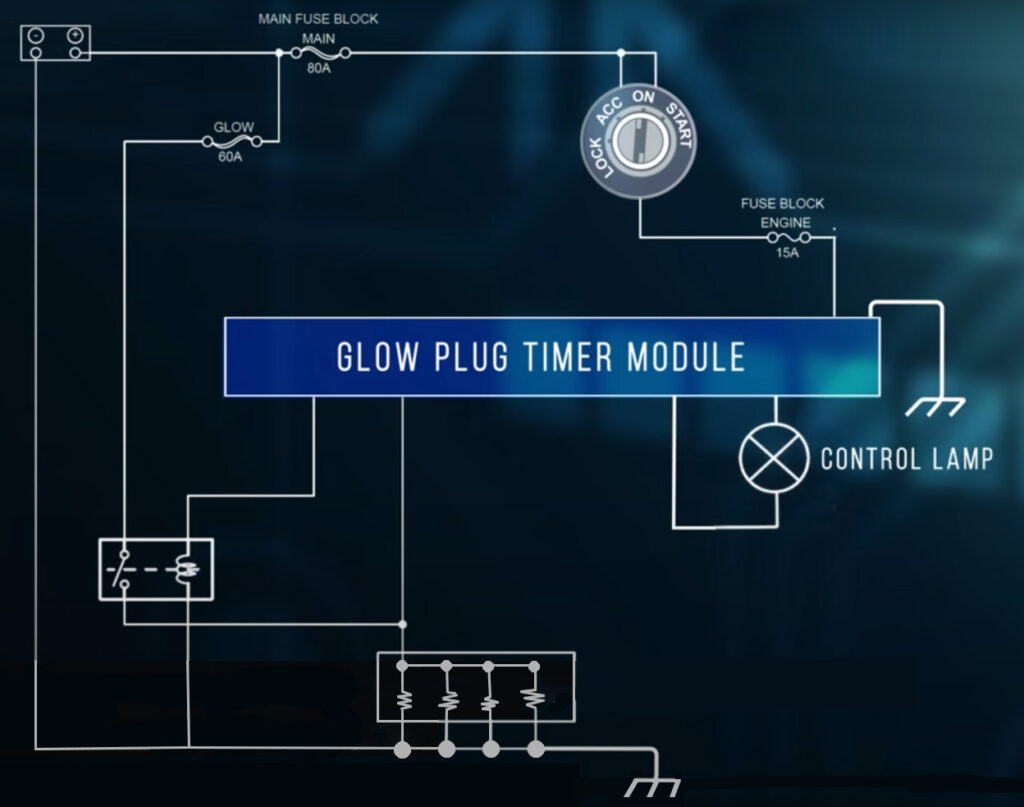

Control Unit: In modern vehicles, a control unit manages the timing and duration of the glow plug operation, ensuring optimal pre-heating and efficient engine starting.
Glow plugs are indispensable for the reliable operation of diesel engines, especially in cold climates. By pre-heating the combustion chamber, they ensure that the engine can start smoothly and efficiently. Modern advancements, such as automated activation and shutdown, have further enhanced their functionality, making diesel engines more user-friendly and reliable. Understanding the glow plug system and its diagram is essential for diagnosing potential issues and ensuring the longevity of the engine.
