Posted in Car Electrical Diagram

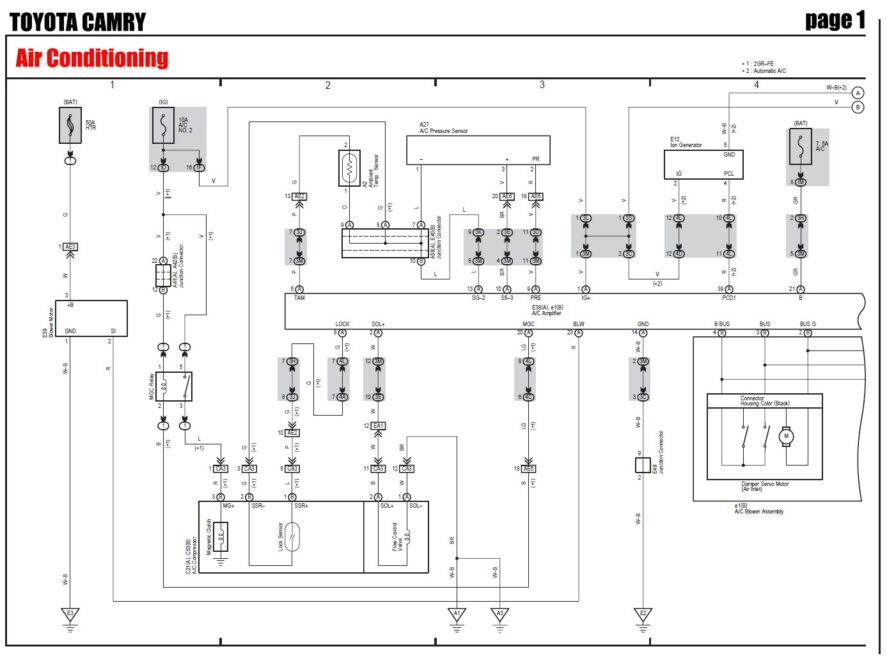

Toyota Camry: Air Conditioning Diagram

Author: Alex Pavlenko Published Date:

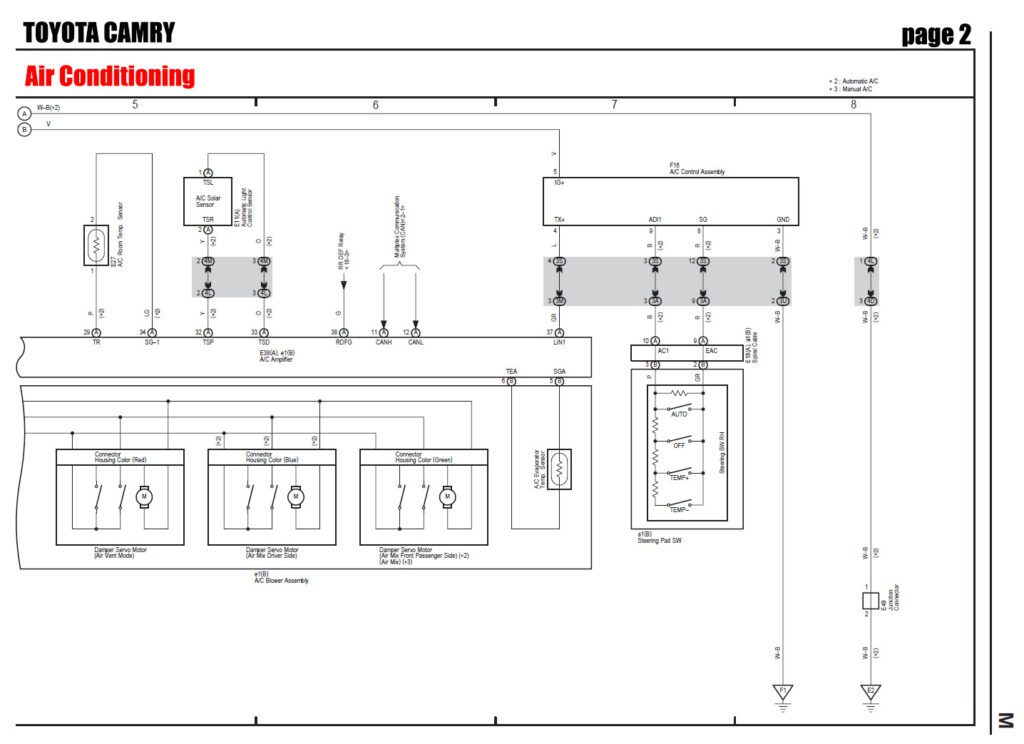

AC Toyota Camry

Author: Alex Pavlenko
