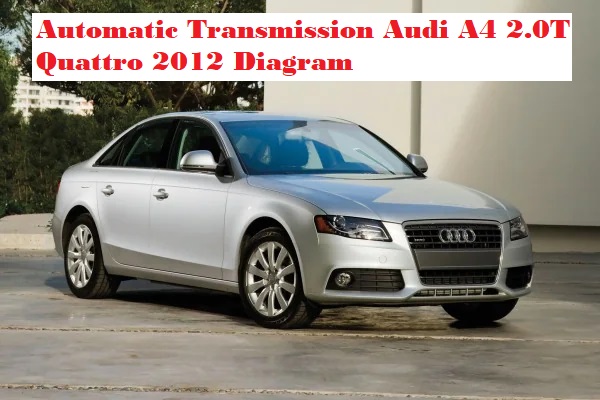

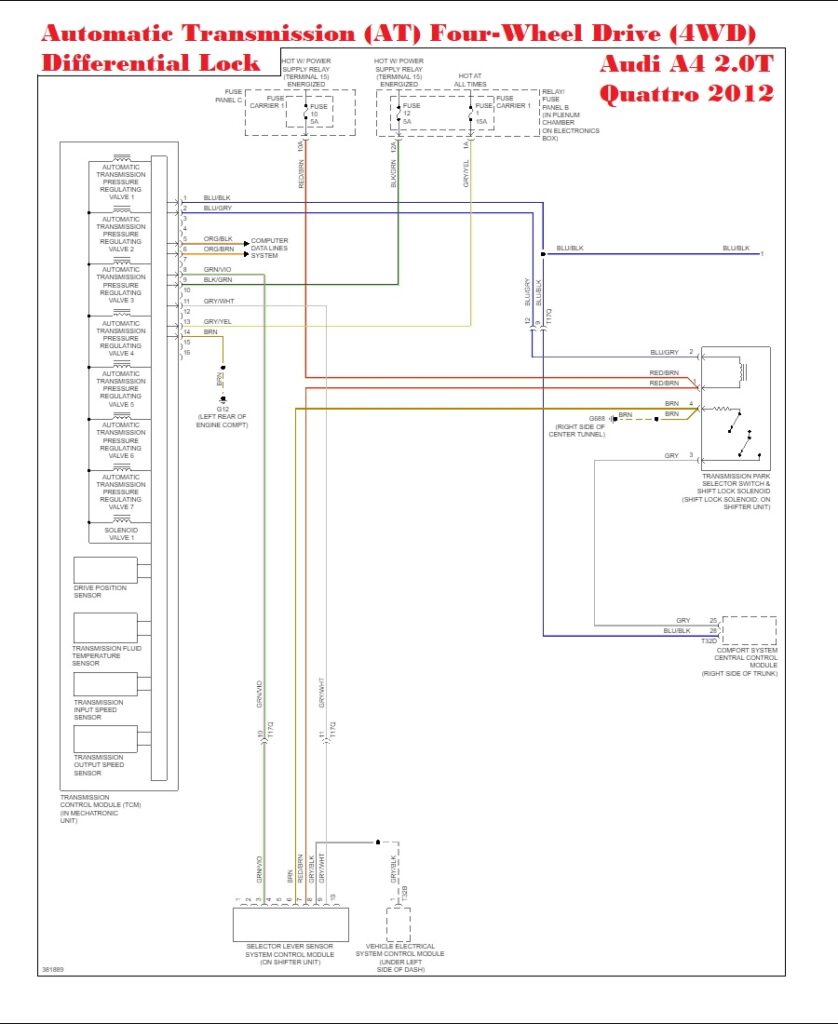

Automatic Transmission Audi A4 2.0T Quattro 2012 Diagram

Author: Alex Pavlenko Published Date:

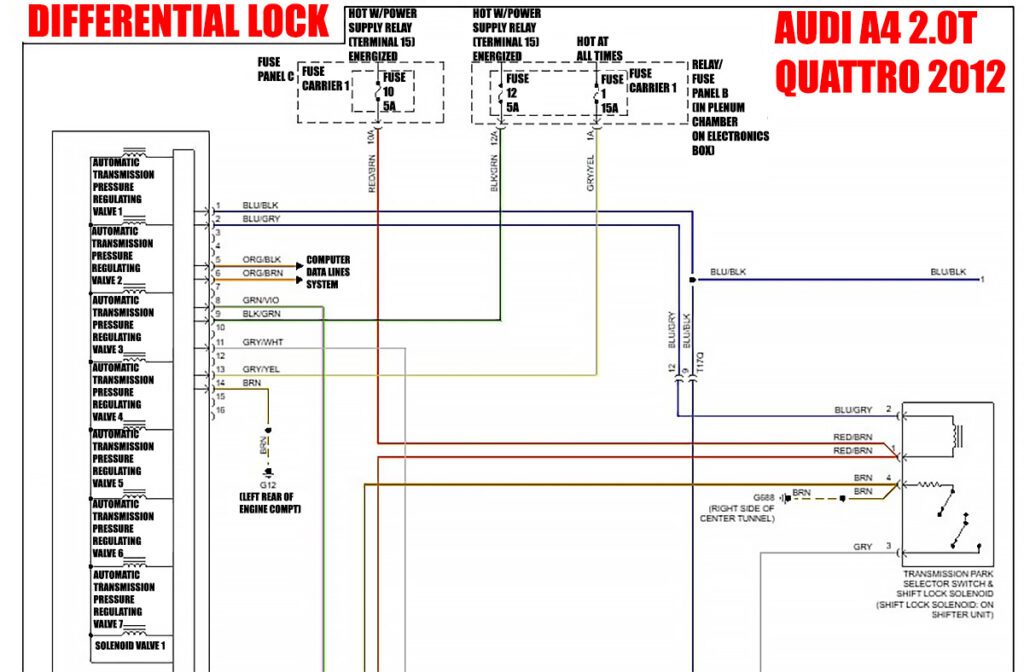

AUDI A4 QUATTRO AUTOMATIC TRANSMISSION

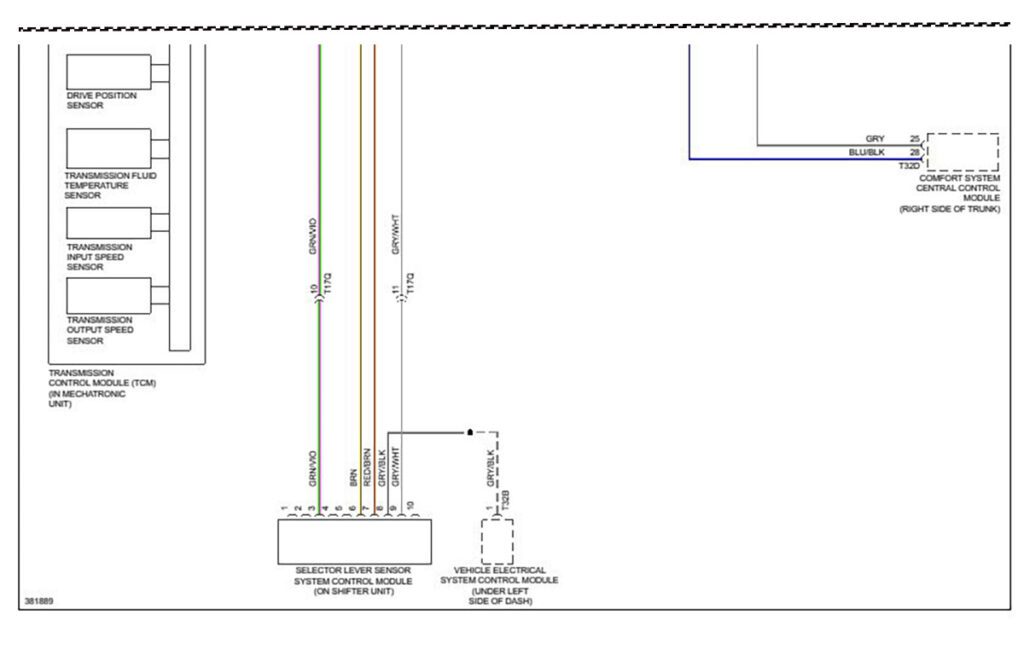

AT AUDI A4

Author: Alex Pavlenko
